I/C Code	ITEM	Part
		Number
	(REF: Q02067)
WIPE-WYN-ZZZ  -	*TYPE E STRAIGHT LINE: SINGLE BLADE WITH HEATER, c/w: ARM and BLADE, 230vac, GA36 Stroke Length: Up to 3500mm Blade Length: Double Blade Carrier Up To 2 x 1000 (1925) (HEATER INCLUDED)
WIPE-WYN-ZZZ  -	8500 Keypad Master 8500 arm or case heaters with case /arm heater Bus options RS485 motor speeds Three Speed (SLW) number of ways 1 way remote switch options No Switch Slave Options Master Keypad Standard/Night vision Standard wash options with wash window heater options no heater	8501-3A0WR0
WIPE-WYN-ZZZ  -	8236 module 8224 Motor Group Group 1 8224 Motor Group Group 2 8224 Motor Group Group 3 8236 Wash/Purge Group All Groups 8236BusOptions RS485	8236S-R123-0
WIPE-WYN-ZZZ  -	Double blade carrier (1275)	805201-650
WIPE-WYN-ZZZ  -	Double blade carrier (1925)	805201-1000

Based on our proven type C and type D design.

The type Combines the sleek profile of the type C with the external motor design of the type D wiper .

Compatible with all the same mechanical spare parts as type C and type D.

Based on our proven type C and type D design.

The type Combines the sleek profile of the type C with the external motor design of the type D wiper .

Compatible with all the same mechanical spare parts as type C and type D.

Innovative Motor Design

Instead of using a conventional motor the Type E uses a stator motor.

•Increased efficiency, over 90%.

•Extremely low consumption .2A per motor on a 220VAC supply.

•Reduced material use.

•Direct drive, no more gears and very few moving parts.

•1 Motor for all voltages.

Clean Installation Aesthetics

Rear-mounted external motor design eliminates protruding pods, creating a sleek, low-profile wiper.

Compared to internal motor no more hole for drive shaft.

Build in enclosure saves 5Kg per wiper.

This makes handling the unit much

easier.

Connection is via a connector instead of having a cable included.

Control Module

Controller is based on our 8224 system.

•1 module controls 3 wipers.

•Can be mounted in ceiling, wall, console equipment room, wherever there is space.

•Has outputs for all auxiliary functions.

•Can be integrated into bridge systems

Compatible with 8500 and 6500 keypads

Compatible with existing keypads, keeps the control of wipers uniform among the fleet.

•Up to 9 groups

•3 speeds

•Programmable intermittent

•Programmable wash purge

•Wiper heating

•Window heating

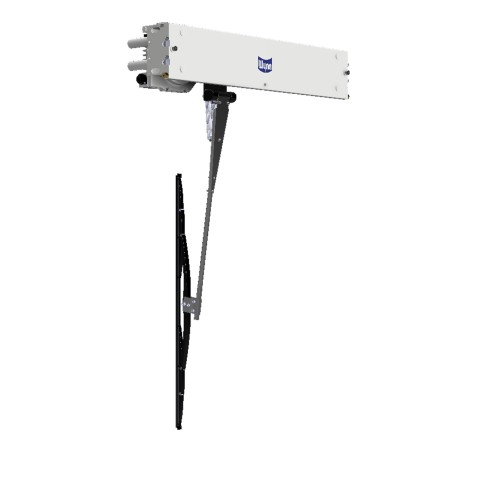

Wynn type E straight line wiper with 8236 series controller. The motor is mounted externally and is rated IP 67.



·        The wipers are built according to ISO17899 and are type approved by DNV.

·        Window wipers are engineered for maximum durability and low lifetime cost.

·        Spares are made in house readily available at affordable prices and guaranteed to be available through the life time of the system.

·        Hepworth offers a world wide support network
