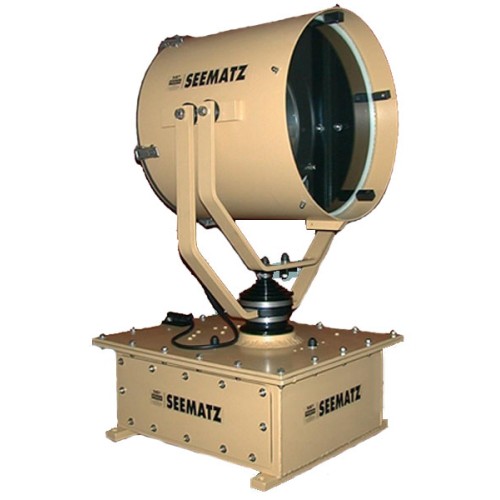

SEEMATZ REMOTE CONTROL SEARCHLIGHT, COMPLETE

SEEMATZ searchlights are constructed of seawater resistant aluminum and have extra hardened BI-VERTRAL safety front panes. The reflectors are made of aluminium, on request it will be possible to install a 400W heating into all the searchlights with 230VAC input power.

SEEMATZ searchlights are designed to facilitate service. The backside of the searchlights can be opened without using tools by quick-release snaps. Also, the cable glands are mounted on the backside cover. This makes it possible to remove the complete plug-in unit including the mirror, lamp, socket and the heating only by unlocking the quick-release snaps. This can be important in case of bad weather conditions!

The column types are designed to operate from the inside of the wheelhouse. The construction is totally watertight and easy to install. After cutting a hole, the column can be inserted smoothly into the roof. This installation is secure and elegant even at roofs with a thick insulation.

SEEMATZ manual steerings are available in two different diameters (80 or 100mm).

Every searchlight from 273 up to 463 types can be mounted on a 80mm pedestal, except the 463 searchlight with HBO, HMI or XBO lamp. This searchlights and also every searchlight type 525 must be mounted on a 100mm pedestal. SEEMATZ searchlights type 75- will be delivered with a 120mm diameter column.

Following types are available:

273, 351, 463, 525 and 750 – king of type = housing diameter in millimeter.

They can be combined with the following lamps:

• HGS = Halogen lamp
• HBO = High-Pressure-Mercury-Lap
• HMI = Metal Halide Vapour Lamp
• XBO = Xenon Short-Arc Lamp

And with the following steerings:

• DS = direct operation at the searchlight
• DH = direct operation at the searchlight – searchlight will be mounted on a 1m pedestal*
• WS = searchlight with a 500mm column into the wheelhouse*
• WH = searchlight with a 500mm column into the wheel house on a 1m pedestal over deck*
• EF = searchlight with a electric remote control.
• * = other length on request
