DPI SEKUR, CAR DIABLO 8000/2 BREATHING AIR TROLLEY - 2 USER - tank work rescue kit (respiratory)

  • Product Code: SEKUR CAR DIABLO 8000/2 - tank work rescue kit (respiratory)
  • Product SKU:
  • Item Code: RESA-DPI-ALTRO-
  • Availability: In Stock

0 reviews / Write a review



NOAH is a Authorized Distributor & Service Centre for DPI SEKUR SCBA and EEBD

Sèkur Car Diablo 8000/2

Compressed air wheeled respirators.

Isolating compressed air breathing apparatuses equipped with large capacity cylinders. Products recommended for work in confined spaces or tank rescue (Presidential Decree 177/2011).


Features

Sekur Car Diablo 8000/2 is an insulated overpressure breathing apparatus fed by two 18-liter steel air cylinders at 220 bar DIN (range for one operator: about three and a half hours), but it can also accommodate one 40-liter cylinder at 200 bar as an alternative to one of the two 18-liter cylinders (range for one operator: about five hours) or 2 steel 6-liter or composite 6.8- or 9-liter cylinders.

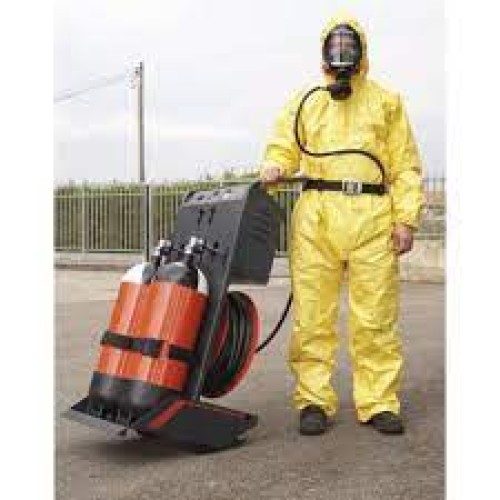

The cylinders and pneumatic part are housed on a metal trolley equipped with wheels and including: metal box containing an overpressure mask and an E400 dispenser, swivel hose reel with 50 mt. of hose, quick coupler for second user. Sekur Car Diablo 8000/2 is also available with a second mask and regulator. Complying with EN 14593-1.


Product Description Code

Sèkur Car Diablo 8000/2


Without cylinders, DIN 300 attachment, C607 SP/A mask:


43421082


Sèkur Car Diablo 8000/2


Without cylinders, DIN 300 connection,SFERA SP/A mask:


43421083


Sèkur Car Diablo 8000/2


With 2 x 18-liter cylinders at 220 bar DIN, mask C607 SP/A:


43421067


With 1 18-liter cylinder and 1 40-liter cylinder at 200 bar din, mask C607 SP/A:


tank work rescue kit (respiratory)

confined space access and rescue solution

SEKUR CAR DIABLO 8000/2

Cylinders, as well as the pneumatic circuit necessary for the reduction of the high pressure, are mounted on a trolley equipped with rubber wheels

This equipment assures the highest protection level of the respiratory tracts, thanks to the positive pressure. Besides, the swivel connector on the air supply prevents interruption during winding and unwinding of the hose on the reel.
It complies with the norm EN 14593-1.

  • - Weight of the equipment (including hose reel assembly, 50 m hose and two cylinders of 18 l in empty condition) is 100 Kgs.
  • - 1180 mm x 600 mm x 480 mm (H x L x W)
  • - 2 cylinders of 18 l each at 220 bar allows for long operating periods (approx. 3,5 hours with an operator using 30 l/min).
  • - If used with a 40 l x 200 bar cylinder in combination with a 18 l cylinder as above mentioned the duration is of approximate 5 hours.
  • - Trolley made of ergonomic metal structural shape
  • - Fitted with 2 cylinders of 18 l at 220 bar or 1 cylinder of 18 l at 200 bar and another one of 40 l at 200 bar to be used simultaneously or 2 steel cylinders of 6 lt. 300 bar or 2 composite cylinders of 6,8/9 lt. 300 bar.
  • - Sheltered pneumatic circuit, fitted with two pressure gauges ( for high and low pressure)



SEKUR CAR DIABLO is a new isolating compressed air breathing apparatus equipped with large capacity cylinders.

It allows for long duration and is easily moved by hand.


MAIN FEATURES

• Cylinders, as well as the pneumatic circuit necessary for the reduction

of the high pressure, are mounted on a trolley equipped

with rubber wheels This equipment assures the highest protection

level of the respiratory tracts, thanks to the positive pressure. Besides,

the swivel connector on the air supply prevents interruption

during winding and unwinding of the hose on the reel.

• It complies with the norm EN 14593-1.

• A nice and new looking design of the trolley is granting major features

improvements:

• excellent balance of the masses and ease of transportation, with a

safe eye to ergonomic, stability and safety aspects too.

• one or two different size cylinders may be fitted thus improving the

flexibility of use.

• cylinders may be charged without removing them from the trolley

all functional and vulnerable components are sheltered inside the

carter for enhanced protection.


WEIGHT

• Weight of the equipment (including hose reel assembly, 50 m hose

and two cylinders of 18 l in empty condition) is 100 Kgs.


DIMENSIONS

• 1180 mm x 600 mm x 480 mm (H x L x W)


DURATION

• 2 cylinders of 18 l each at 220 bar allows for long operating periods

(approx. 3,5 hours with an operator using 30 l/min).

• If used with a 40 l x 200 bar cylinder in combination with a 18 l cylinder

as above mentioned the duration is of approximate 5 hours.

• The duration may in principle be prolonged just by replacing cylinders

during the intervention.

• Trolley made of ergonomic metal structural shape. Fitted with 2

cylinders of 18 l at 220 bar or 1 cylinder of 18 l at 200 bar and

another one of 40 l at 200 bar to be used simultaneously or 2 steel

cylinders of 6 lt. 300 bar or 2 composite cylinders of 6,8/9 lt. 300 bar.

The 18 l. cylinders are complete with bottom rubber protection, (assuring

vertical standing when put on the floor) and quick release

couplings according to the norm EN 144-1 and EN 144-2. They are

connected to the manifold by means of steel coil wrapped hoses

• Sheltered pneumatic circuit, fitted with two pressure gauges ( for

high and low pressure) Pneumatica

• Two-outlet manifold for independent cylinder refill: it assures that

cylinders may be charged one at a time, thanks to the automatic

air flow shutoff offered by two couplings complying with the norm

EN 144-2. Besides, the circuit is easily depressurized thanks to two

pushbuttons.

• 50 m hose that can be wound around a hose reel assembly when

not required. The hose is resistant to oils and solvents and is equipped

with a quick release connector.

• Three positions available: transport, vertical standing, horizontal

standing position.

• Fitted with standard rubber wheels for easy transport also on uneven

land, as well as with two small pivoting additional wheels for

the best stability and direction.

• Bigger rubber wheels may be supplied on demand to be used on

very difficult grounds.

• Quick Connection to the hose reel enabling for a second operator

option.

• Wide storage container to house 2 masks and 2 demand valves. It

offers protection to masks, demand valve and belt from mechanical

or environmental contamination. On its top, a flat surface can

be used as a comfortable object holder.

• Usually supplied with a SFERA SP/A full face mask and a E400 demand

valve; it is however also available with a C607 SP/A full face

mask and/or a second mask complete with demand valve.

• C 2000 pressure reducer calibrated at 8 bar for a free flow of 1200

l/min.

• Warning device and safety valve.


IBC Code - International Code for the Construction and Equipment of Ships Carrying Dangerous Chemicals in BulkAmended by Resolution MEPC.225(64) - Chapter 14 Personnel protection - 14.2 Safety equipment

14.2 Safety equipment

  14.2.1 Ships carrying cargoes for which 15.12, 15.12.1 or 15.12.3 is listed in column o in the table of chapter 17 shall have on board sufficient but not less than three complete sets of safety equipment, each permitting personnel to enter a gas-filled compartment and perform work there for at least 20 min. Such equipment shall be in addition to that required by SOLAS regulation II-2/10.10.

  14.2.2 One complete set of safety equipment shall consist of:

  • .1 one self-contained air-breathing apparatus (not using stored oxygen);

  • .2 protective clothing, boots, gloves and tight-fitting goggles;

  • .3 fireproof lifeline with belt resistant to the cargoes carried; and

  • .4 explosion-proof lamp.

  14.2.3 For the safety equipment required in 14.2.1, all ships shall carry either:

  • .1 one set of fully charged spare air bottles for each breathing apparatus;

  • .2 a special air compressor suitable for the supply of high-pressure air of the required purity;

  • .3 a charging manifold capable of dealing with sufficient spare air bottles for the breathing apparatus; or

  • .4 fully charged spare air bottles with a total free air capacity of at least 6,000 l for each breathing apparatus on board in excess of the requirements of SOLAS regulation II-2/10.10.

  14.2.4 A cargo pump-room on ships carrying cargoes which are subject to the requirements of 15.18 or cargoes for which in column k in the table of chapter 17 toxic-vapour-detection equipment is required but is not available shall have either:

  • .1 a low-pressure line system with hose connections suitable for use with the breathing apparatus required by 14.2.1. This system shall provide sufficient high-pressure air capacity to supply, through pressure-reduction devices, enough low-pressure air to enable two men to work in a gas-dangerous space for at least 1 h without using the air bottles of the breathing apparatus. Means shall be provided for recharging the fixed air bottles and the breathing apparatus air bottles from a special air compressor suitable for the supply of high-pressure air of the required purity; or

  • .2 an equivalent quantity of spare bottled air in lieu of the low-pressure air line.

  14.2.5 At least one set of safety equipment as required by 14.2.2 shall be kept in a suitable clearly marked locker in a readily accessible place near the cargo pump-room. The other sets of safety equipment shall also be kept in suitable, clearly marked, easily accessible places.

  14.2.6 The breathing apparatus shall be inspected at least once a month by a responsible officer, and the inspection recorded in the ship's log-book. The equipment shall be inspected and tested by an expert at least once a year.

A BA system for confined spaces provides a source of breathable air to prevent oxygen deficiency and protect workers from toxic atmospheres, typically using Self-Contained Breathing Apparatus (SCBA) for autonomy or Airline Breathing Apparatus for extended work durations. Systems include a face mask, a pressure-reducing valve, an air cylinder or airline supply, and a hose connecting them, with features like anti-panic systems and communication for safety. The choice between SCBA and airline systems depends on the duration, complexity, and specific hazards of the confined space.
Types of Breathing Apparatus (BA)
  • Self-Contained Breathing Apparatus (SCBA):
    • Description: A self-contained unit with a compressed air cylinder, worn by the user, which provides complete freedom of movement.
    • Best For: Entry into Immediately Dangerous to Life or Health (IDLH) environments or situations where the atmosphere is unknown, providing the highest level of respiratory protection.
