8330 AXION

Fully stainless steel safety shower for highly corrosive environments

Freestanding safety combination shower 8330 AXION - all stainless steel components - AXION eyewash head and drench shower nozzle – 1-1/4” piping

Product Description

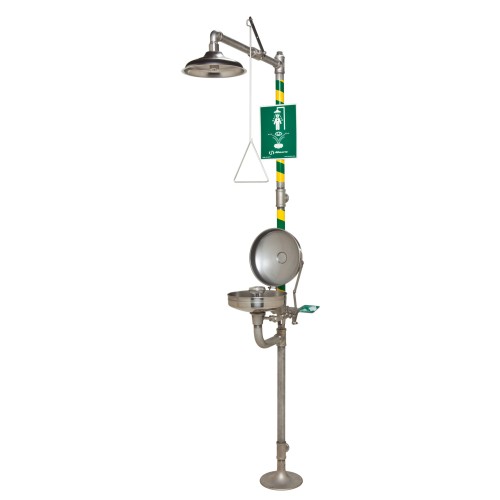

8330 – AXION® MSR Combination Corrosion Resistant Shower and Eye/Face Wash

HAWS, 8330, AXION, SAFETY SHOWER & EYE/FACE WASH, HAND AND FOOT  OPERATED, C/W: EYEWASH BOWL COVER, 9102, COMPLETE WITH SIGNAGE, COMPLIANT TO ANSI Z358.1.2014,
USA

- PIPING: STAINLESS STEEL, SS304
- BOWL: STAINLESS STEEL, SS304
- BOWL COVER: STAINLESS STEEL, SS304
- SHOWER HEAD: ABS

Model 8330, corrosion-resistant, all stainless steel combination shower with AXION® MSR eye/face wash and showerhead.

AXION® MSR Combination Corrosion Resistant Shower and Eye/Face Wash

Model 8330, corrosion-resistant, all stainless steel combination shower with AXION® MSR eye/face wash and showerhead.

Haws Model 8330 Type 304 Stainless Steel combination shower and eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eye washes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain. AXION MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets. The combination unit is equipped with an in-line 50 x 50 mesh water strainer and eyewash dust cover to keep the irrigation process protected. A great addition to unsafe environments where the eyes, face, and body may be exposed to corrosive materials.

• Features an 11" (27.9 cm) bowl and 9" (22.9 cm) floor flange
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Requires minimal maintenance and is equipped with test card to record weekly testing
• AXION MSR drench showerhead with flow control delivers dispersed flow for uniform drenching
• Reducing installation time, eyewash and valve assembly is pre-built and fully water/pressure tested
• Solid 1-1/4" stainless steel construction makes for a sturdy piece of corrosive resistant equipment
• Provided with universal emergency sign and high-visibility stripe
• Supply and Waste: 1-1/4" NPT

Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

Model 8330, corrosion-resistant, all stainless steel combination shower with AXION MSR™ eye/face wash and shower head, stainless steel emergency shower

haws 8330 safety shower

SPECIFICATIONS

Model 8330 all stainless steel combination shower and eye/face wash shall include a stainless steel 11″ (27.9 cm) round bowl, an AXION MSR™ stainless steel eye/face wash head that supplies an inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control. Unit shall also include the AXION MSR hydrodynamic design stainless steel showerhead with flow control, stainless steel dust cover, stainless steel 50 x 50 mesh water strainer, and stainless steel stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit shall also include a stainless steel cast 9″ (22.9 cm) diameter floor flange, Type 304 Stainless Steel pipe and fittings, universal sign, self-adhesive high visibility Safety Green and bright yellow stripes, and 1-1/4″ IPS supply.

APPLICATIONS

In an environment where materials need to withstand the greatest corrosion, where eyes, face, or body of any person may be exposed to these injurious or corrosive materials, suitable facilities for quick drenching or flushing of the eyes, face, and body shall be provided within the work area for immediate emergency use. Emergency eye/face wash facilities and deluge showers shall be in unobstructed and accessible locations that require no more than 10 seconds for the injured person to reach.Model 8330 is certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

FEATURES AND BENEFITS

CONSTRUCTION

OPTIONS

• Test Tag: SP170 is a green waterproof test card with space for date and initials of inspector. Used to record weekly testing of emergency equipment.
• Large Shower/Eyewash Sign: Model SP178LG large vertical universal combination emergency shower and eyewash sign. Size: 18″ x 24″ (45.7 x 61 cm).
• Foot Treadle : Model SP220SS foot control assembly, including chain, clamp, nut, ring, screw, spring and stainless steel treadle.
• Thermostatic Mixing Valve: Model 9201E AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 31 gpm (117.3 L).

ISSA / IMPA CODE:

560601, 560602, 560603, 560611, 560612, 560621

Emergency showers and eyewashes are required by the ANSI/ISEA Z358.1‐2014 standard to be

activated weekly, with a more thorough evaluation on an annual basis. With OSHA fine

increases of 80 percent having taken effect in August 2016, violations for inappropriate or

inadequate eyewash and shower equipment have resulted in penalties of more than $100,000.

The standard guides the placement, functionality, and maintenance requirements for

emergency showers and eyewashes. ANSI/ISEA Z358.1, in its current form, is the clearest and

most useful tool for protecting workers from eye, face, and bodily injuries resulting from caustic

and corrosive materials introduced by workplace incidents such as spills, splashes, and blown

particulates.

The standard requires stringent testing to be conducted on a regular basis to ensure properly

functioning equipment is being provided at all times if an incident were to occur. We should all

understand that compliance is not a once‐a‐year or once‐a‐month responsibility. Compliance is

an all‐day, every‐day requirement. Accordingly, emergency showers and eyewashes are

required by the ANSI/ISEA Z358.1‐2014 standard to be activated weekly, with a more thorough

evaluation on an annual basis. This requirement is established in Sections including 4.6.2, 4.6.5.

In practice, emergency response equipment such as eyewashes and showers sometimes fall to

the wayside when it comes to maintenance, especially when prioritized against emergency

preparedness equipment such as eye protection and fall protection. You should know that OSHA

does not prioritize or take a backseat when it comes to providing adequate and properly

functioning equipment, regardless whether the equipment aids pre‐ or post‐incident.

ANSI Weekly Minimum Performance Requirements

The standard itself has three minimum requirements for weekly inspections:

1. Emergency equipment shall be activated weekly. (Each piece of equipment is required to

be activated.)

2. Activation shall ensure flow of water to the head(s) of the device. (This would be both the

eyewash or eye/face wash head, as well as the showerhead.)

3. Duration of the activation shall be sufficient to ensure all stagnant water is flushed from

the unit itself and all sections of piping that do not form part of a constant circulation

system, also known as "dead leg" portions. (The duration is determined by the length of

piping where stagnant water could be sitting before it reaches the head(s) of the unit.)

In addition to the above weekly minimum performance checklist required by ANSI/ISEA, it

is recommended as a best practice to conduct additional weekly functional checks. The purpose

of these additional checks is to fully ensure the equipment is operating correctly and is capable

of providing proper first aid in the event of an emergency.

ACCESS

 Path of travel to the safety station shall be free of obstructions. (This could include hoses,

boxes, and doors.) (Sections 4.5.2, 5.4.2, 6.4.2, 7.4.2)

SHOWER

 Shower must deliver a minimum of 20 gallons (75.7 L) per minute. (Sec. 4.1.2, 4.1.4, 7.1)

 The valve shall go from “off” to “on” in one second or less and flushing fluid shall remain

on without the use of operator’s hands. (Sec. 4.2, 7.1)

EYEWASH/EYE/FACE WASH

 Outlets shall be protected from airborne contaminants. (Dust covers must be in place.)

(Sec. 5.1.3, 6.1.3, 7.1)

 The valve shall go from “off” to “on” in one second or less and flushing fluid shall remain

on without the use of operator’s hands. (Sec. 5.2, 6.2, 7.2)

 The flushing fluid of an eyewash or eye/face wash shall cover the areas between the

interior and exterior lines of a gauge at some point less than 8 inches (20.3 cm) above the

eyewash nozzle. (sec 5.1.8, 6.1.8,7.1)

 Must provide a means of a controlled flow to both eyes simultaneously at a velocity low

enough to be non‐injurious. (Sec. 5.1.1, 6.1.1, 7.1)

COMBINATION UNIT

 Combination unit components shall be capable of operating simultaneously. (When the

eyewash or eye/face wash is activated, and then the shower is activated, there should be

no “starvation” occurring to either of the heads.) (Sec. 7.3, 7.4.4)

TEMPERATURE

 Deliver tepid flushing fluid. (The required temperature range is 60°F ‐ 100°F [16°C ‐

38°C])(Sec. 4.5.6, 5.4.6, 6.4.6, 7.4.5)

Plumbed Shower and Eyewash Equipment

As a general statement, all equipment needs to be inspected weekly to ensure that there is a

flushing fluid supply and that the equipment is in good repair. If the equipment is of a plumbed

design, then it should also be activated weekly to clear the supply line of any sediment

buildup and to minimize any microbial contamination due to stagnant water.

Self‐Contained Eyewash and Shower Equipment

Self‐contained, also often referred to as "portable," emergency response equipment is typically

used in locations where there is either no access to water or at highly mobile sites where

hazards are mobile. The ANSI/ISEA requirement for this type of equipment is to be visually

inspected weekly to determine whether the flushing fluid needs to be exchanged or

supplemented (Sections 4.6.3 and others). The units should be maintained as per the

manufacturer’s specific model instructions.

A majority of self‐contained units that use potable water also offer a sterile bacteriostatic

additive option to prevent the water from growing bacteria. An exchange of the water and refill

of the additive is required every three months for most additive products, as well as rinsing the

unit clean between the exchanges. If an additive is not being used, then the water should be

exchanged on a weekly basis, at a minimum, with a thorough tank cleaning monthly. On an

annual basis, self‐contained units are required to undergo the full test just as plumbed units do.

The question is often asked whether a company must hire a certified tester to conduct the

weekly and annual inspections. Fortunately, there are no prerequisite or certification

requirements to be able to test the equipment, although having a complete understanding of

the installation and performance requirements will aid in ensuring conformance. There are

various training tools, including Online Competent Inspector Training, offered by equipment

manufacturers and others for individuals to become subject‐matter experts. This allows

company personnel to get familiar with what to look for and how to conduct the tests

appropriately. Many companies today opt to have an outside third‐party inspection performed

for them annually, which provides an added measure of credibility and assurance to the review

process.

Facilities that contain hundreds of shower and eyewash units should strive to create as many

subject‐matter experts as possible. Once trained, the weekly checks can be completed rather

quickly. Creating facility maps, having full testing kits available, and holding recurring training

classes can assist in the tedious yet crucial weekly task.

Worker protection should be a priority in every safety plan. Simply providing emergency

showers and eyewashes is not enough. It is necessary to inspect, test, and monitor equipment

readiness and performance for the optimal response.

53 06 21 Emergency Shower Station - Drench Shower Free Standing
