PAINS WESSEX, pains wessex manoverboard mk9

MOB SIGNAL (LIGHT WITH ORANGE SMOKE SIGNAL)

MAN OVERBOARD LIFEBUOY MARKER MANOVERBOARD, 360, PAINS WESSEX

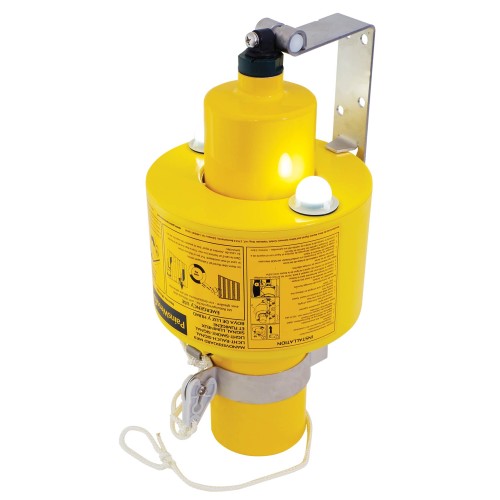

The Pains Wessex Manoverboard MK9 Compact Lifebuoy Marker is normally mounted on a ship's bridge wing attached to a 4 kg lifebuoy. It is automatically or manually deployed to mark the position of a person in the water by day or night. Featuring a self-activated LED lighting system which exceeds SOLAS requirements for 2 candela light output and 2 hours duration, plus providing 15 minutes of dense orange smoke. Ships are required to fit at least two markers.

Order Codes:

  • 9537800
  • SOLAS Approved Product

  • Man Overboard (MOB) and Smoke Signal with bracket                              .

    Model: 9537800

    Brand Name: Pains Wesex


  • Height375mm (14.76 inches)Diameter183mm (7.20 inches)Weight3.3Kg (7.27 lbs)Weight Including Bracket3.85Kg (8.5lbs)Temp Op Min1 C (33.8 °F)Temp Op Max30 C (86.0 °F)Temp Store Min-30 °CTemp Store Max+65 °CLight Intensity2 candelaLamps Bulbs2 x LED 3.6v 2AFlare ColorOrangeUse With Lifebuoy Weighing4.0 KgAttach To Lifebuoy With Line4 m (13 feet)

  • When to Use

    Used in an emergency to mark position of a man overboard by day or night. Deployed by attached 4 kg lifebuoy. Provides 15 minutes of dense orange smoke. Far exceeds SOLAS requirements of 2 hours at 2 candela for light output and duration. Safe to use on petrol or oil covered water. Lithium battery sealed for life - no annual replacement. Automatic or manual deployment. Universal stainless steel mounting bracket. Tested to survive a 56m drop into water (SOLAS 30m). Ideal for use on ships or rigs with high freeboard.

    Storage Requirements

    Store upright in mounting bracket in original packaging.

    Disposal

    Hazardous item, dispose of responsibly through approved channels in accordance with local regulations.

    TypeFibreboard Box
    Maximum Quantity Per Pack2
    Pack Dimensions41 x 26 x 49 cm
    Estimate Gross Weight14.4 Kg
    Estimate Net Weight13.4 Kg
    Net Explosive Content Per Pack3.44 Kg
    Hazard Class1.4S
    UN NumberUN0507: Signals, smoke
    Transport MethodRoad, Sea or Air

    Brand code / Origin9537800 / U.K.
    ModelMan Overboard Mk9
    Impa330321
    Applicationsmounted on a ship’s bridge wing attached to a 4 kg lifebuoy.
    Requirements2 / Bridge
    Packing41x26x49 cm 15kg ( 2pcs / packing )
    ApprovalSolas M.E.D.


  • Lifebuoy Marker, Manoverboard MK9, PAINSWESSEX, PN: 9537800
  • lifebuoy self igniting light and self activating smoke signal
Manoverboards Pains Wessex Mk9 impa 330321


  • Previous Model: IMPA-330323 LIFEBUOY MARKER BUOYSMOKE MK8, W/BRACKET PAINSWESSEX 53830

    IMPA 330322 - LIFEBUOY MARKER MANOVERBOARD


    Item No. 9537800

    Pains Wessex MANOVERBOARD Mk9 SOLAS lifebuoy marker


                               LIFEBUOY MARKER MANOVERBOARD, 360 WITH BRACKET PAI

                               NS WESSEX

                               Our Part No  : ISSA-330321

                               Maker's No   : 330321


    330321 LIFEBUOY MARKER MANOVERBOARD, MK9 W/BRACKET PAINSWESSEX

    IMPA Code:
    330321
    UOM:
    SET
    MTML UOM:
    SET

    Combined light and smoke lifebuoy marker. Day and night signal which is attached to a lifebuoy (not supplied) and used in an emergency to mark position of a manoverboard. 1) Colour of smoke: Dense orange smoke 2) Duration of burn time : 15 minutes 3) Light intensity and duration: Minimum 2 candela for 2 hours 4) Ignition : Pull-wire igniter 5) Temperature operation range: -1oC to 30oC 6) Temperature storage range: -30oC to 75oC 7) Weight : 3.5kgs
