• IBUKI EA110-LF4 Electronic Alarm

IBUKI EA110-LF4 Electronic Alarm

  • Product Code: EA110-LF4
  • Product SKU:

    • IBUKI-EAA-6179_EA110-LF4 LED-ALARM-NOAH-AGENCIES-www.noah.com.sg :
  • Item Code: ZMIS-IBU-ZZZ
  • Availability: Pre-Order

  • IBUKI-EAA-6179_EA110-LF4 LED-ALARM-NOAH-AGENCIES-www.noah.com.sg :

0 reviews / Write a review

The IBUKI EA110-LF4 is a marine-grade electronic alarm and LED flash beacon produced by Ibuki Kogyo Co., Ltd. Designed for marine vessels and harsh industrial environments, it features a preset alarm tone that outputs up to 110 dB to 115 dB, combined with a bright LED flash module.
Core Specifications
  • Brand/Model: IBUKI EA110-LF4
  • Sound Output: 110 dB to 115 dB at 1 meter
  • Tones: Preset to 1 selected alarm tone (expandable/changeable via internal DIP switches on select variants)
  • Visual Beacon: High-efficiency LED flash beacon (available in multiple globe colors)
  • Protection Rating: IP56 waterproof protection
  • Voltage Options: Typically configured for AC100V, AC220V, or DC24V depending on your vessel's grid
  • Enclosure: Die-cast aluminum base and marine-grade protective shell
Where to Use & Applications
  • Maritime: Used across commercial vessels and ships as an internal signaling and high-noise alert device.
  • Industrial: Widely deployed on overhead cranes, conveying equipment, and port piers.

  • I/C CODE

    ITEM

    Part
    Number

    ZMIS-IBU-ZZZ  -

    **Unfortunately -RF4 is out of production, so we will offer ongoing model as replacement**
    .
    IBUKI      EA110-LF4 Electronic Alarm
    Globe:    YELLOW
    Voltage:  AC220V       -  (Please confirm the  voltage upon order)
    .
    Spec : Maker standard

    EA110-LF4

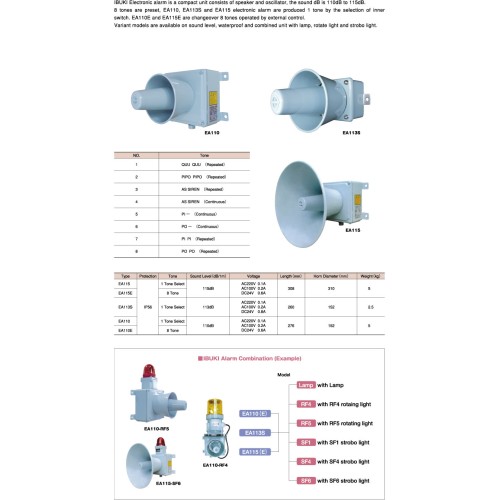

  • IBUKI EA110 Electronic Alarm


    IBUKI EA110 Electronic Alarm is a compact unit consists of speaker and oscillator, the sound dB is 110dB to 115dB.

    8 tones are preset, EA110, EA113S and EA115 electronic alarm are produced 1 tone by the selection of inner switch. EA110E and EA115E are changeover 8 tones operated by external control.

    Variant models are available on sound level, waterproof and combine unit with lamp, rotate light and strobo light.


    Features

    • Protection: IP56

    • Tone: 1 tone select

    • Sound lever (dB/1m): 110dB

    • Voltage: AC100V 0.2A / AC220V 0.1A / DC24V 0.6A

    • Air consumption: 5 L/s

    • Lenght: 276mm

    • Horn diameter: 152mm

    • Weight: 5kg
