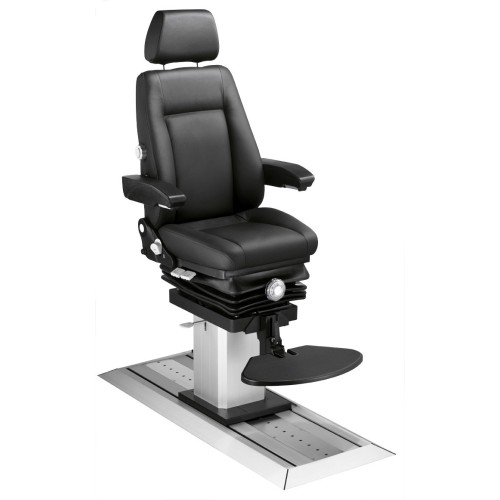

CLEEMANN, NAUTIC STAR
The all rounder
The helmsman chair Nautic Star offers such functions as the Nautic but is additionally equipped with a special suspension system, lumbar support and an individual weight-adjustment for most comfortable seating even in “rough” sea.
Serial features:
- Mechanical suspension
- Weight adjustment
- Lumbar support
- Adjustable headrest
- Foldable/ angle adjustable comfort armrests
- Backrest adjustment
- For/ aft adjustment 190mm
- Lumbar support
- Swivel-mechanism 360°
- Angle adjustment of the seat top
- Strong lifting column/ salt water
- resistant aluminium
- Shock-absorber in the column
- Foldable, angle-adjustable footrest/ swivels together with the seat-top
- Standard-upholstery: Fabric grey (Trevira CS)
(all other materials and colours on request)
Available sitting heights:
Height D = 600/760
Height E = 660/880
Height F = 750/1060
CCS021-07
Helmsman chair "Nautic Star" Upholstery PVC black /
Armrests
features of the Seat:
- Seat top only
- Headrest
- Adjustable comfort-armrests
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal
adjustment -95/+95
- Sitting height:
min.: 270mm / max.: 330mm
- Height adjustment: 60mm
- Weight of the Seat
: 45 kg
|
I/C Code
|
ITEM
|
Part
Number
|
|
|
|
ZMIS-CLM-ZZZ -
|
.
CLEEMANN Helmsman chair " Nautic Star "
Upholstery Leather black / Armrest
Serial features of the Seat: - Headrest
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal adjustment -95/+95
- 360° revolving-mechanism
- Foldable footrest
- Seat height: min.: 655mm / max.: 875mm
- Height adjustment 220mm: Lifting column lift = 160mm,+ seat
cushion = 60mm
- Base plate 295 x 295mm
- Weight of the Seat : 78 kg
.
- Not included – 2-point seat belt – If required, additional cost.
.
HS Code for Cleemann products is: 94012000
.
|
CCS021-02-E00-1-655
|
|
|
I/C Code
|
ITEM
|
Part
|
|
Number
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN Helmsman chair "Nautic Star"
Upholstery Leather black
Serial features of the Seat:
- Headrest
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal adjustment -95/+95
- 360° revolving-mechanism
- Seat height: min.: 425mm / max.: 485mm
- Height adjustment 60mm: seat cushion = 60mm
- Static column
- 18-Rolls-carriage, centrally locked
- inclusive two-point belt with retractor
- Weight of the Seat : 67,5 kg
.
The HS Code for our products is: 94012000
.
|
CCS021Z.0-02-010-11-425
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN Deck Rail 700 mm
Rail System for the chair
Technical specifications:
- Length of the Deck Rail : 700 mm
- Width of the Deck Rail : 370 mm
- Height of the Deck Rail : 36,5 mm
- Weight of the Deck Rail :11kg
|
CCS
120375-0700
|
|
I/C Code
|
ITEM
|
Part
|
M.O.Q
|
|
Number
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN
Helmsman
chair " Nautic Star " mount on base plate
Upholstery leather black / Armrest
Serial features of the Seat:
- Headrest
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal adjustment -95/+95
- 360° revolving-mechanism
- Foldable Footrest
- Seat height: min.: 655mm / max.: 875mm
- Height adjustment 220mm
- Lifting column lift = 160mm,+ seat cushion = 60mm
- Base plate 295 x 295mm
- Weight of the Seat : 78 kg
.
.
|
CCS021-02-E00-1-655
|
1
|
|
I/C Code
|
ITEM
|
Part
|
|
Number
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN Helmsman
chair " Nautic Star "
Upholstery Leather black / Armrests
Serial features of the Seat:
- Headrest
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal adjustment -95/+95
- 360° revolving-mechanism
- Foldable Footrest
- Seat height: min.: 675mm / max.: 895mm
- Height adjustment 220mm:
- Lifting column lift = 160mm,+seat cushion = 60mm
- 18-Rolls-carriage, centrally locked
- Weight of the Seat : 84 kg
|
CCS021-02-E00-11-675
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN Deck Rail 2000 mm
Rail System for the chair
Technical specifications:
- Length of the Deck Rail : 2000 mm
- Width of the Deck Rail : 370 mm
- Height of the Deck Rail : 36,5 mm
- Weight of the Deck Rail : 30 kg
|
CCS 120375-2000
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN Helmsman
chair " Nautic Star "
Upholstery Leather black / Armrests
Serial features of the Seat:
- Headrest
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal adjustment -95/+95
- 360° revolving-mechanism
- Foldable Footrest
- Seat height: min.: 675mm / max.: 895mm
- Height adjustment 220mm:
- Lifting column lift = 160mm,+seat cushion = 60mm
- 18-Rolls-carriage, centrally locked
- Weight of the Seat : 84 kg
|
CCS021-02-E00-11-675
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN Deck Rail 2500 mm
Rail System for the chair
Technical specifications:
- Length of the Deck Rail : 2500 mm
- Width of the Deck Rail : 370 mm
- Height of the Deck Rail : 36,5 mm
- Weight of the Deck Rail : 38 kg
|
CCS 120375-2500
|
|
ZMIS-CLM-ZZZ -
|
CLEEMANN Helmsman chair " Nautic Star "
Upholstery leather black / Armrest
Serial features of the Seat:
- Headrest
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal adjustment -95/+95
- 360° revolving-mechanism
- Foldable Footrest
- Seat height: min.: 655mm / max.: 875mm
- Height adjustment 220mm
- Lifting column lift = 160mm,+ seat cushion = 60mm
- Base plate 295 x 295mm
- Weight of the Seat : 78 kg
|
CCS021-02-E00-1-655
|
|
I/C Code
|
ITEM
|
Part
|
|
Number
|
|
ZMIS-CLM-ZZZ
-
|
CLEEMANN Helmsman Chair " Nautic Star ", on base plate
Upholstery leather black / Armrest
Serial features of the Seat:
- Headrest
- Adjustable back rest
- Lumbar support
- Weight adjustment
- Horizontal adjustment -95/+95
- 360° revolving-mechanism
- Foldable footrest
- Seat height: min.: 655mm / max.: 875mm
- Height adjustment 220mm: Lifting column lift = 160mm,+ seat cushion = 60mm
- Base plate 295 x 295mm
- Weight of the Seat : 78 kg
.
The HS Code for our products is: 94012000
|
CCS021-02-E00-1-655
|
