SEEMATZ WINDOW WIPERS

  • Product Code: SEEMATZ WINDOW WIPERS
  • Product SKU:
  • Item Code: WIPE-STZ-ZZZ-
  • Availability: Pre-Order

SEEMATZ WINDOW WIPERS

Next to the typical yellow coloured searchlights, Pesch GmbH also produces Seematz window wipers. The straight-line wipers cover a maximal square surface of the window. All parts are of stainless steel, except for the housing of the window wipers. Those are made of seawater resistant aluminium.  End position switches, thermostatically controlled heating (100W) and the necessary tubes for the spray wash facility are standard fittings.



All the Seematz type window wipers are designed for rough conditions and are made of the best seawater resitant metals. Besides this, Seematz has designed their window wipers with ease of use and replacement in mind. Because of their incomplicated and robust build, spare parts are easy to replace and in most cases even replacable without tools.


ATLANTIC

    • Two continuous speeds
    • Three-step interval
    • Two additional functions per wiper possible (for example window heating, spray water)
    • Status control by LED for each wiper in operation
    • Various panel sizes available

OCEAN


Input voltages 24VDC, 110VAC, 230VAC, 400VAC, 440VAC
    • Two continuous speeds
    • Five-step interval
    • Group functions starting from 2 wipers
    • Various panel sizes available



PACIFIC


MODBUS- capable control
    • Up to 24 wipers on one panel in a group
    • Five-step interval
    • “Single sweep” function
    • Various panel sizes available

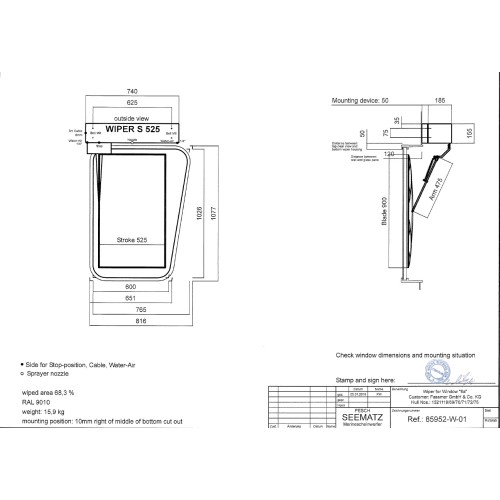

WIPER-S-525

Seematz Straight Line Wiper with Hea????ng & Endswitch Stroke 525mm# Housing 740mm


WIPER-S-825

Seematzz Straight Line Wiper with Hea????ng & Engswitch Stroke 825mm # Housing 1040mm


425-0-27-500

Seematz Wiper Arm Length 475mm HS Code 84799070/ Country of Origin: Germany


WB100-0

Seematz WB100-0 Wiperblade 900mm

I/C Code

ITEM

Part

Number

WIPE-STZ-ZZZ-

SEEMATZ, Main control card 2 wiper
Hauptplatine 2 Wischer
old part no. 425-068-Z2

425-0-50-1

WIPE-STZ-ZZZ-

SEEMATZ, Straight Line Wiper with Heating & Endswitch
Stroke 1275mm # Housing 1490mm
Ref. 59657 W - 05

WIPER-S-1275

WIPE-STZ-ZZZ-

SEEMATZ, Wiper Arm length. 560mm

425-0-27-60

WIPE-STZ-ZZZ-

SEEMATZ, Wiper blade compl. 950mm

425-0-31-10

WIPE-STZ-ZZZ-

SEEMATZ, Spray Nozzle compl. with brass parts

NOZZL-E

I/C Code

ITEM

Part

Number



SEEMATZ, WIPER PER SHIPSET CONSIST OF:



WIPE-STZ-ZZZ-

SEEMATZ, Straight Line Wiper with Heating & Endswitch
Stroke 2025mm # Housing: 2240mm

WIPER-S-2025

WIPE-STZ-ZZZ-

SEEMATZ, Wiper arm 750mm max.

WA750-

WIPE-STZ-ZZZ-

SEEMATZ, Wiperblade 1000mm
Spring-loaded wiper blade # 1000mm pcs. include 1 pcs.

WB100-0

WIPE-STZ-ZZZ-

SEEMATZ, Power Supply Unit ATLANTIC for 1 Wiper Input Power: 220-240VAC

PSUA1-

WIPE-STZ-ZZZ-

SEEMATZ, ATLANTIC Control Panel for 1 Wiper
3 steps intervall, Slow/Fast speed
Panel size: 72x72mm

PULTA-1



WIPE-STZ-ZZZ-


SEEMATZ  Straight Line Wiper with Heating & Endswitch
Stroke 975 # Housing 1190mm  without Arm and Blade
Gewicht: 20,7000 kg / 20,7000 kg
Ref. 85362W01

WIPER-S-975

I/C Code

ITEM

Part

Number

WIPE-STZ-ZZZ-

SEEMATZ  Straight Line Wiper with Heating & Endswitch
Stroke 1325mm # Housing 1540mm
Gewicht: 24,9000 kg / 74,7000 kg

WIPER-S1325

WIPE-STZ-ZZZ-

SEEMATZ  Wiper Arm length max. 600mm
Wischerarm Länge max. 600mm
HS Code 84799015
County of Origin : Germany
Gewicht: 1,0500 kg / 3,1500 kg

425-0-27-600

WIPE-STZ-ZZZ-

SEEMATZ  Wiperblade 1000mm
Spring-loaded wiper blade # 1000mm

pcs. include 1 pcs.

Gewicht: 0,6050 kg / 1,8150 kg

WB100-0

WIPE-STZ-ZZZ-

SEEMATZ  Nozzle with brass and Pvc parts complete

425-0-09-1


I/C Code

ITEM
